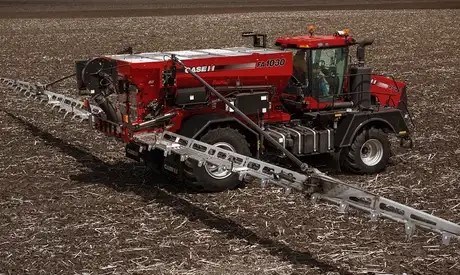

Case IH Titan 4540 Floater
Features
Engine
Productive Power
Available in two horsepower ratings, the Titan 40 Series’ diesel engine features the world-class innovations of FPT Powertrain Technologies. This 8.7-liter engine is designed to meet tough conditions while delivering optimum fuel efficiency and ease of service.
Operator Environment
More Comfort Means More Acres
When application windows are narrow and every hour in the field counts, operator comfort is no luxury - it's absolutely essential. Air-ride seating, ergonomically placed, easy-to-reach controls and an ultra-quiet interior are just a few of the features that let operators work longer with less fatigue.
Control Options
Optimum Control, Maximum Efficiency
Viper 4+
- 12.1-inch Touch-Screen Interface
- Displays boom status, application rate and pressure readings
- Functions as a stand-alone rate controller or it can be an integral part of guidance or mapping systems
- Available for the FA 1030 Air Boom Applicator and 610 Liquid System
RS1 Autoguidance
- Compatible with the Viper 4+ controllers
- Guidance, GPS receiver and Slingshot® functions all in one component
- Includes fleet management, wireless data transfer, remote diagnostics and over-the-air-updates
Optional AFS 392 Receiver
- Factory installed GNSS receiver capable of a wide range of accuracy levels.
- Can utilize WAAS and RangePoint RTX (subscription purchased separately)
- Requires AFS Pro 700 display and AFS AccuGuide autoguidance system for repeatable guidance
3-Wheel Floaters
Durable and Responsive Design
From its solid, durable frame to robust drivetrain, a Titan 40 Series 3-wheel chassis is designed to work as hard as the rest of your crew during your application windows.
4-wheel Floaters
Handle the Most Demanding Field Conditions
4-wheel Titan 40 Series Floaters are built to withstand heavy loads while at the same time offering a more comfortable ride. Available with either a 340 hp or 410 hp engine.
Maintenance & Uptime
Run Better, For Longer
At Case IH, "maximum uptime" is one of the pillars of every product we offer. That means designing and building equipment that optimizes time in the field every day. Get in the field faster and stay there longer with time-saving features:
- Front-tilt hood for access to the engine, coolers and daily checkpoints
- Swing-out grill for radiator and cooling system maintenance (4-wheel floaters)
- Swing-out compartments on each side (3-wheel floaters)
- Ground-level service to the air tanks
- Convenient swing-out steps on 3-wheel models
- Halogen or LED lighting choices to extend the workday
Run Better, For Longer
At Case IH, "maximum uptime" is one of the pillars of every product we offer. That means designing and building equipment that optimizes time in the field every day. Get in the field faster and stay there longer with time-saving features:
- Front-tilt hood for access to the engine, coolers and daily checkpoints
- Swing-out grill for radiator and cooling system maintenance (4-wheel floaters)
- Swing-out compartments on each side (3-wheel floaters)
- Ground-level service to the air tanks
- Convenient swing-out steps on 3-wheel models
- Halogen or LED lighting choices to extend the workday
Rated Power hp [ kW ] | 410 [306] |
Max Power hp [ kW ] | 425 [317] |
Make | Case IH FPT |
Model | 8.7 L |
Number Of Cylinders | 6 |
Displacement Inches³ [ ltr ] | 531 [8.7] |
Fuel Tank Capacity gallons (US) [ ltr ] | 150 [568] |
DEF Tank Capacity gallons (US) [ ltr ] | 28 [106] |
Transmission | Allison 3000 RDS |
Description | 6-speed automatic |
Max Road Speed mph [ kph ] | |
Number Of Wheels | 4 |
Front Axle Description | AxleTech FS-25, non-drive |
Rear Axle Description | AxleTech PRC 674 2-speed |
Front Brakes | 16.5"x6" drum, air-actuated cam |
Rear Brakes | 16.5"x5" drum, air-actuated cam |
Front Axle Suspension | Leaf spring |
Rear Axle Suspension | Leaf spring |
Front Tire Size | 54x31x26, 16PR STG |
Rear Tire Size | 66x43.00x25, 16PR |
Largest Front Tire Option | 750/50 R26 |
Largest Rear Tire Option | 1050/50 R32 |
Wheelbase inches [ mm ] | 180 [4572] |
Overall Chassis Length ft/in [ m ] | 25 ft 3 in [7.7] |
Height To Top Of Cab ft/in [ m ] | 11 ft 11 in [3.63] |
Overall Width ft/in [ m ] | 11 ft 6 in [3.51] |
Crop Clearance inches [ mm ] | |
Weight With Bare Chassis lbs [ kg ] | 22940 [10405] |
Weight, Optional Dry System, Empty - Lb (kg) | |
Weight, Optional Liquid System, Empty - Lb (kg) | 7,370 to 7,620 (3343 to 3456) |
Front Axle Load Rating lbs [ kg ] | 16000 [7257] |
Rear Axle Load Rating lbs [ kg ] | 34000 [15422] |
Max Gross Vehicle Weight Rating lbs [ kg ] | 50000 [22680] |
Dry Bin Applicator | Case IH 810 Flex-Air Applicator |
Single Bin Capacity - Cu Ft (cu M) | 287 (8.13) |
Split Bin Capacity - Cu Ft (cu M) | 116 and 171 (3.28 and 4.84) |
Liquid System | Case IH 610 Liquid System |
Capacity gallons (US) [ ltr ] | 1800 [6814] |
Max Capacity gallons (US) [ ltr ] | 2000 [7571] |
Empty Weight With Dry System lbs [ kg ] | 6560 [2976] |
Empty Weight With Liquid System lbs [ kg ] | |
Single Bin Capacity ft³ [ m³ ] |
